Ceiling fan winding machine WIND-FW-2
- Product description: Suitable for winding ceiling fan stator, wind internal , external slots, and suitable for external armature such as frequency conversion alternator and generator armature.
PRODUCT INTRODUCTION
Two station ceiling fan winding machine WIND-FW-2 Application:

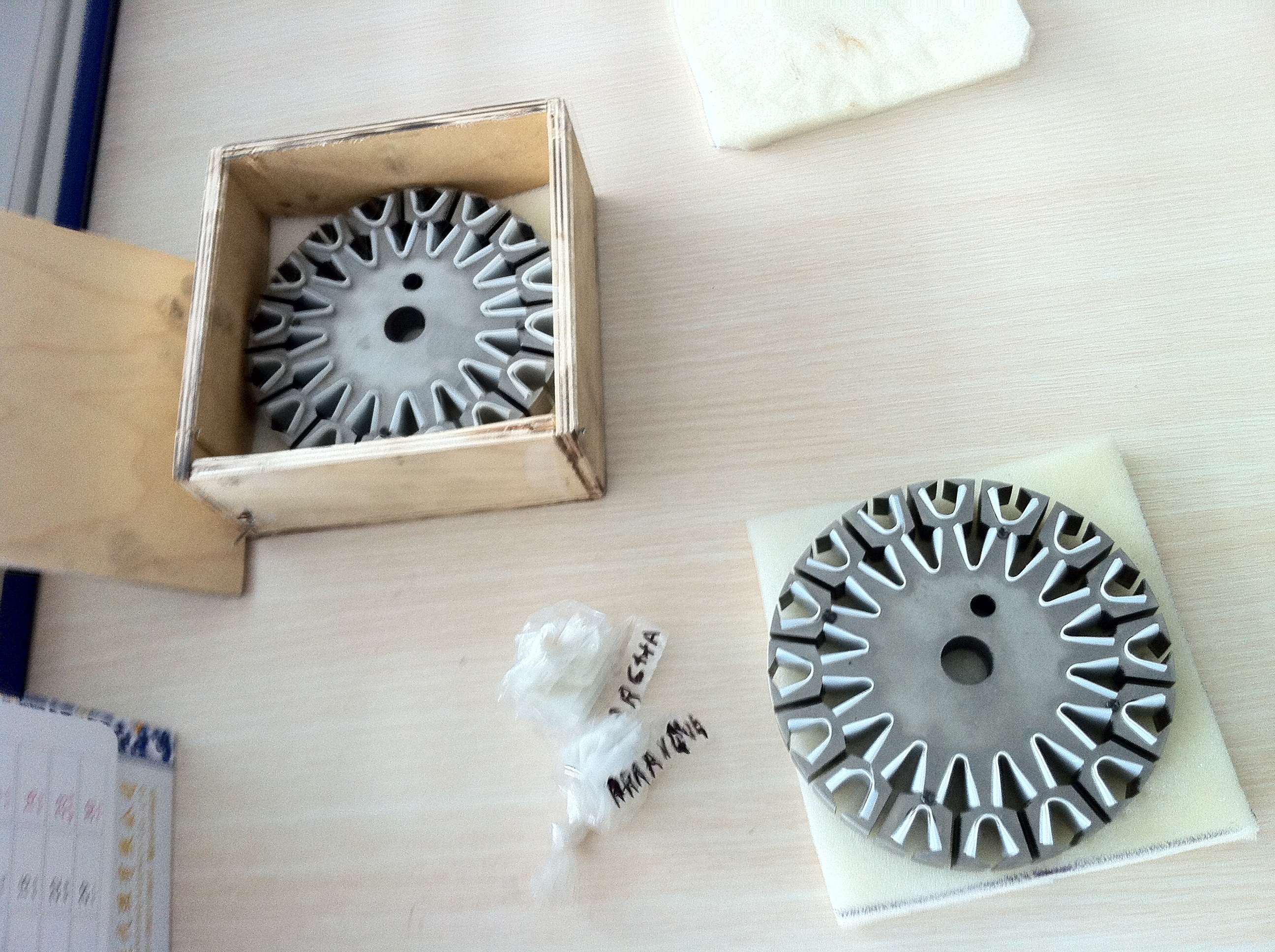

suitable for winding ceiling fan stator, external armature such as
frequency conversion alternator and generator armature.
Features:
The machine has two working stations.
Controlled by micro computer, auto winding, auto allay, auto indexing; allay and indexing is controlled by stepping motor, winding is controlled by frequency converting motor,
turns number could be accurate up to 0.1 round.
Main technical data:
Wire diameter: 0.05-0.45mm
Stator O.D: 100mm-163mm
Stack height: 6-30mm
Slot number: less than 24 slots
RPM: 2500RPM Max
Voltage: 220v/50Hz, or customize
Power: AC 1.5kw
Weight: 135kgs
Dimension: 1350mm*630mm*1130mm
Video:
https://vimeo.com/123992978 (For a Argentina customer working video)
https://vimeo.com/202027633 inner side
https://vimeo.com/202023485 outside
Contact:emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website: http://www.motor-machinery.com; http://www.coilswinding.com
